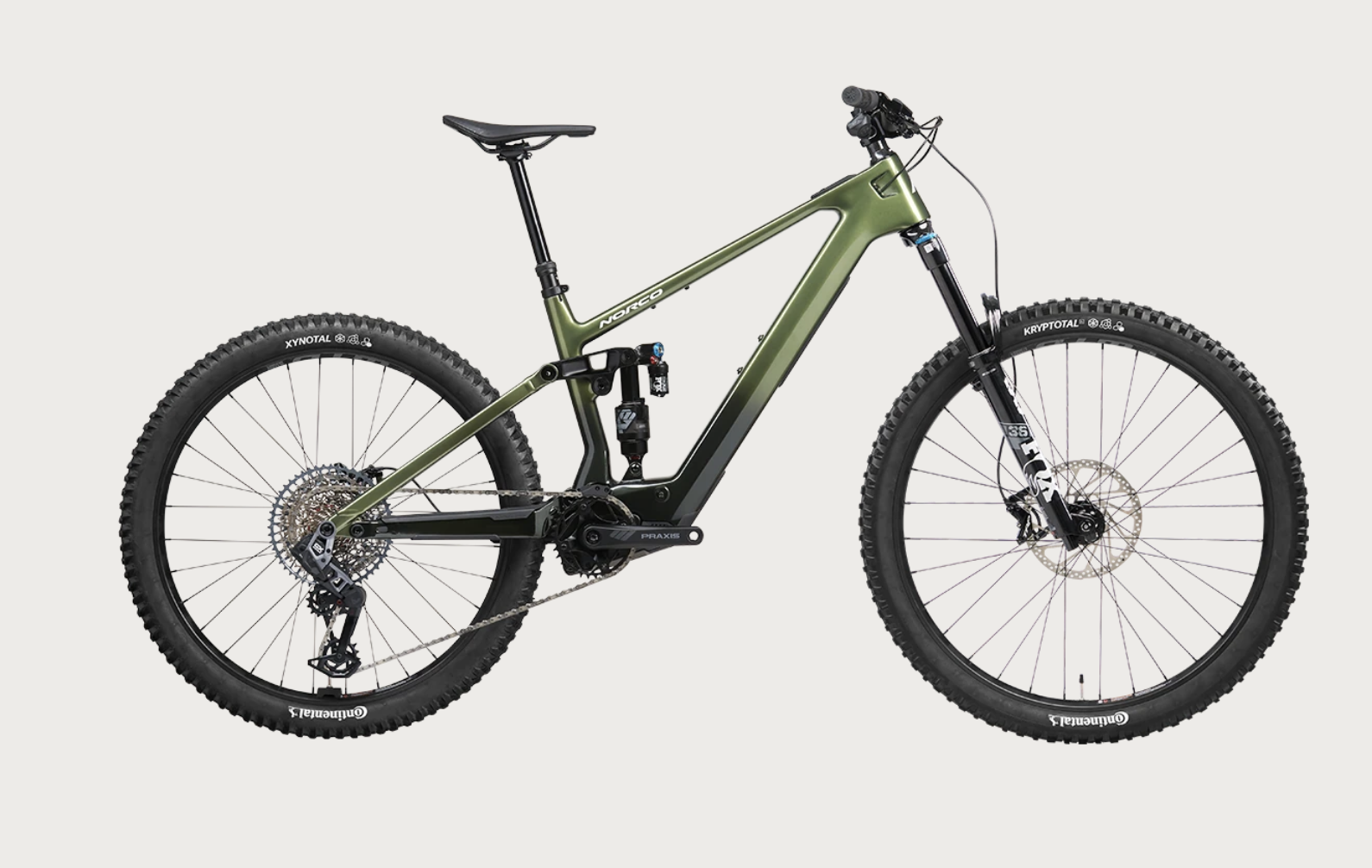

24 Norco Fluid VLT C2 Fox Performance

Availability: In stock (1)

Light weight capability and full speed fun.

With 140mm of custom-tuned, precision-engineered suspension travel and 150mm fork travel, the Fluid VLT C2 140 delivers an improved ride feel with the latest in integrated e-mtb technology from Bosch.




Learn More

DETAILS

• The latest in integrated e‑MTB technology from Bosch.
• Built to Accommodate Rider Preference.
• Bosch Performance Line SX with 400Wh battery.
• Control your assist and range with the Bosch eBike Flow App
• Reactive, playful, ride performance.
• Uncompromising components engineered and spec'd for light weight capability.
• Set up like a Pro – features the Ride Aligned™ Setup Guide.
• No Other Way Limited Lifetime Warranty.



Specs

DOWNLOAD SUPPORT DOCS

• Warranty
• Owner's Manual

Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

Frameset

FRAME	Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
FORK	Fox 36 Performance Elite, 29”, 150 mm Travel
REAR SHOCK	Fox FLOAT X2 Performance Elite, 185x55mm Trunnion

Drivetrain

REAR SHIFTER	SRAM Pod Ultimate Controller
REAR DERAILLEUR	SRAM GX Eagle AXS T-Type
CRANKSET	Praxis Alloy HD eMTB, 165mm
CASSETTE	SRAM 1275 T-Type 10-52T
CHAIN	SRAM GX Eagle T-Type

Brakes

FRONT BRAKE	TRP Trail Evo, 4 Piston
FRONT BRAKE ROTOR	TRP TR203, 203mm, 2.3mm Thick
REAR BRAKE	TRP Trail Evo, 4 Piston
REAR BRAKE ROTOR	TRP TR180, 180mm, 2.3mm Thick
BRAKE LEVERS	TRP Trail Evo

Components

HANDLEBAR	6061 DB Alloy, 800mm, 25mm Rise
STEM	Norco SL 6061 Alloy 40mm Length, 35mm Clamp
SEATPOST	TranzX YSI08FL RAD+ Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
HEADSET	FSA No. 57 ZS, Carbon Top Cover
HEADSET SPACER	Carbon, 2x10mm, 1x5mm
SADDLE	Fizik Ridon
GRIPS	WTB Wavelength

Wheels

FRONT HUB	Bear Pawls, 110x15mm Boost, 6-Bolt
REAR HUB	Bear Pawls, Impel 24T, 3-Bearing Steel Driver Body, 148x12mm Boost, 6-Bolt, XD
RIMS	WTB KOM Trail 32H, 27.5" Rear, 29" Front, 30mm ID
FRONT TIRE	Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
REAR TIRE	Maxxis Minion DHRII, 3C Max Terra EXO+, 27.5x2.4", Folding

Electric Components

DRIVE UNIT	Bosch Performance Line SX
BATTERY	Bosch CPT 400Wh

Weight

WEIGHT	19.9 kg (44.0 lbs)
WEIGHT SIZE	S3
NOTE	Average of the two: green 43.88 lbs and purple 44.04 lbs

Additional Info

FEATURE 1	Bosch Smart System Rim Magnet
FEATURE 2	Bosch PowerMore 250 Range Extender* (Not Included)

Geometry

		1	2	3	4	5
	Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
	Travel (mm front/mm rear)	150/140
	Reach	422.5	447.5	472.5	497.5	522.5
	Stack	610	619	628	637	646
HTA	Head Tube Angle	64.5
OS	Fork Offset	44
ST	Seat Tube Length	385	395	415	445	475
STA	Effective Seat Tube Angle	76.50	76.75	77.00	77.25	77.50
RC	Rear Centre Length	432		436	440	444
BB	Bottom Bracket Drop	28/8
BBH	Bottom Bracket Height	350
HTT	Horizontal Top Tube	569	593	618	642	666
WB	Wheelbase	1181	1210	1243	1277	1310
SOH	Standover	715	701	703	720	743
HT	Head Tube Length	100	110	120	130	140
	Trail	132
	Recommended Seatpost Drop	125	150	170	200
	Maximum Post Insertion	240	250	270	300	330
	Stem Length	40
	Crank Length	165
	Tire Size	2.35" – 2.6"
	Water Bottle Compatible	1 x 620 mL	1 x 750 mL

Recommended Sizing

Your Height:

Highlighting sizing for 6'3"

Change

5'1"5'2"5'3"5'4"5'5"5'6"5'7"5'8"5'9"5'10"5'11"6'0"6'1"6'2"6'3"6'4"6'5"6'6"155160165170175180185190195Size 5Size 4Size 3Size 2Size 1RIDER HEIGHT FT/INRIDER HEIGHT CMFRAME SIZESYour heightOptimal fit. Recommended sizefor riders of that heightGrow in/out. Bike will beslightly small/large butmanageable.
