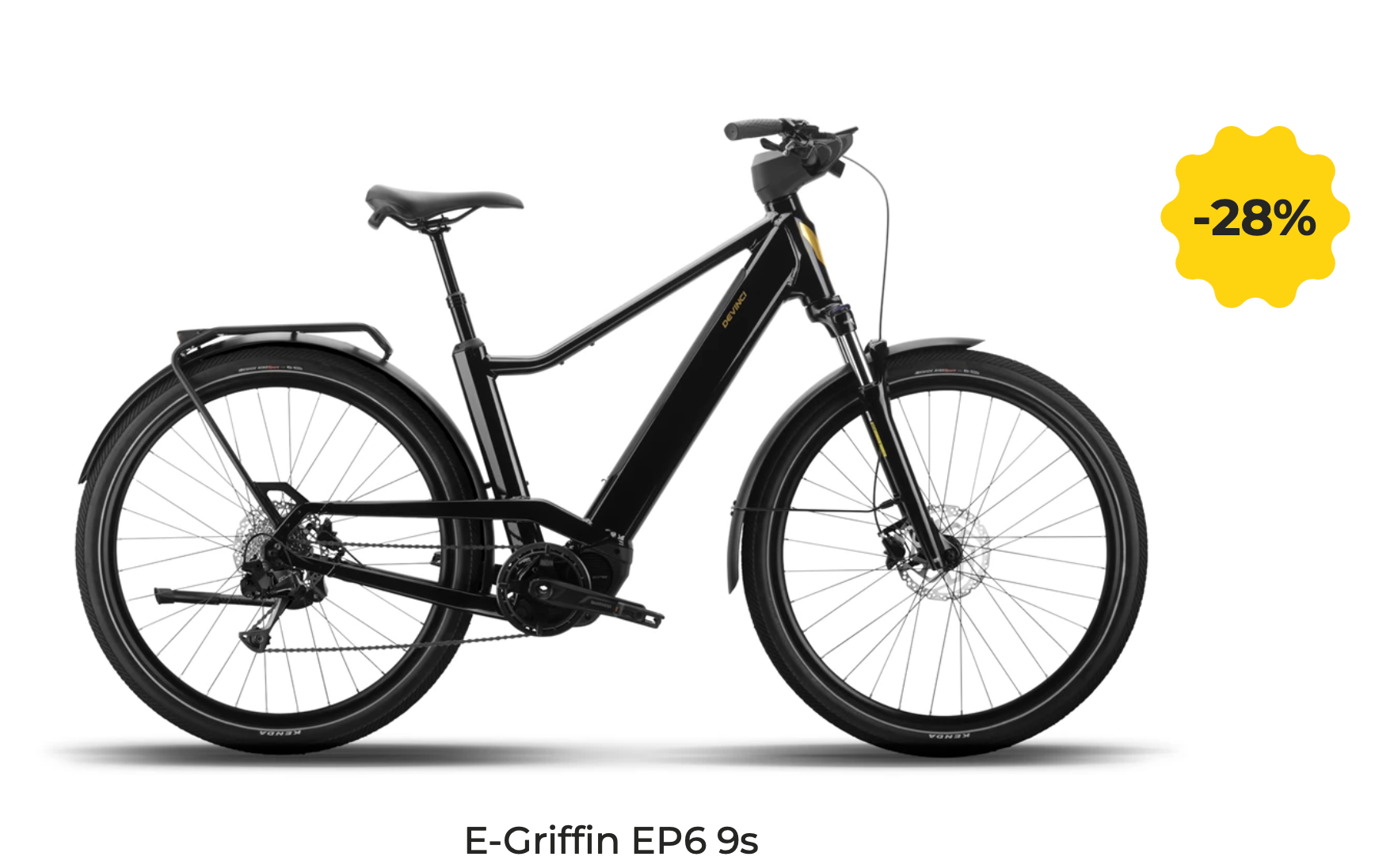

25 Devinci E-Griffin EP6 9s

Home / 25 Devinci E-Griffin EP6 9s

Availability: In stock (1)

The E-Griffin takes the guesswork out of city and leisure biking. It’s built around a powerful Shimano Steps motor for reliable power on demand. No detail of the bike was overlooked. From the integrated handlebar display to the powerful hydraulic brakes, suspension fork and step-thru frame, it’s tailored to the needs and style of riding style. So you can ride often, with confidence.

TECHNICAL
SPECIFICATIONS

E-GRIFFIN EP6 9S

COMPARE+

Manufacturing

Designed & Assembled in Canada

DOWNLOAD THE MANUAL

Frame

FRAMEAluminum Optimum S03
FORKSuntour NVX30 NLO | 80mm
HEADSETFSA Custom
SEAT CLAMPAlloy CNC | 34.9mm

Cockpit

HANDLEBARV2 Comp | 640mm | 48mm rise | 40° backsweep
STEMTranzX | B:31.8mm | 6°
SADDLEDevinci
SEATPOSTTranzX Dropper 31.6mm 1xLever
GRIPSVelo Ergo Comfort

Brakes

FRONT BRAKEShimano MT201/MT200 | 2 Pistons
REAR BRAKEShimano MT-201
ROTORSShimano RT26 | 180mm

Drivetrain

REAR DERAILLEURShimano Cues U4000 | 9s
REAR SHIFTERShimano Cues U4000 | 9s
CRANKARMShimano E-BIKE SYSTEMS EM600
CHAINRINGShimano E-BIKE SYSTEMS CRET600 | 38T Single chain guard
CASSETTEShimano Cues 9s 11-41T
CHAINShimano LG500 | 9/10/11s

Wheels

FRONT RIMV2 Comp 700c | 23mm inner
FRONT HUBFormula Disc sealed
REAR HUBFormula EHL-135S | Sealed | 6bolts | 10x135mm | HG
REAR RIMV2 Comp 700c | 23mm inner
SPOKESStainless 14G
FRONT TIREKenda KwickNine | 29x2.2 | KS
REAR TIREKenda KwickNine | 29x2.2 | KS

E-System

COMPUTERShimano E-BIKE SYSTEMS EN610
DRIVE UNITShimano E-BIKE SYSTEMS EP600 | 250W | 85Nm
BATTERYBMZ Gen2 540Wh

Accessories

PEDALSWellgo C211DU
FRONT FENDERSunny Wheel
REAR FENDERSunny Wheel
KICKSTANDKickstand Devinci Black

Weight

0.00 kg / 0.00 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

FRAME &
GEOMETRY

Select your height

FINDING THE PERFECT FIT - Getting the right bike size is key to comfort and performance. Our authorized Devinci dealers are experts in helping you determine the perfect size, whether in-store or remotely. For the best fit, share your key measurements—like your inseam—along with your riding style and handling preferences. You can also refer to our ‘Size Selector’ tool for an initial recommendation.

	S	M	L
A - ST (MM)	400	460	525
B - SA (DEG)	73.0	73.0	73.0
C - HA (DEG)	68.0	68.0	68.0
D - TT (MM)	621	637	653
E - REACH (MM)	415	425	435
F - CS (MM)	480	480	480
G - WB (MM)	1181	1199	1216
H - BBH (MM)	295	295	290
I - SOH (MM)	665	718	770
J - STACK (MM)	671	689	708
K - HT (MM)	170	190	210
RIDER HEIGHT (CM)	152-168	168-180	180-193
