25 Devinci E-Troy Lite AL MX Eagle 70

C$6,999.00
Availability: In stock (1)

Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.

TECHNICAL
SPECIFICATIONS

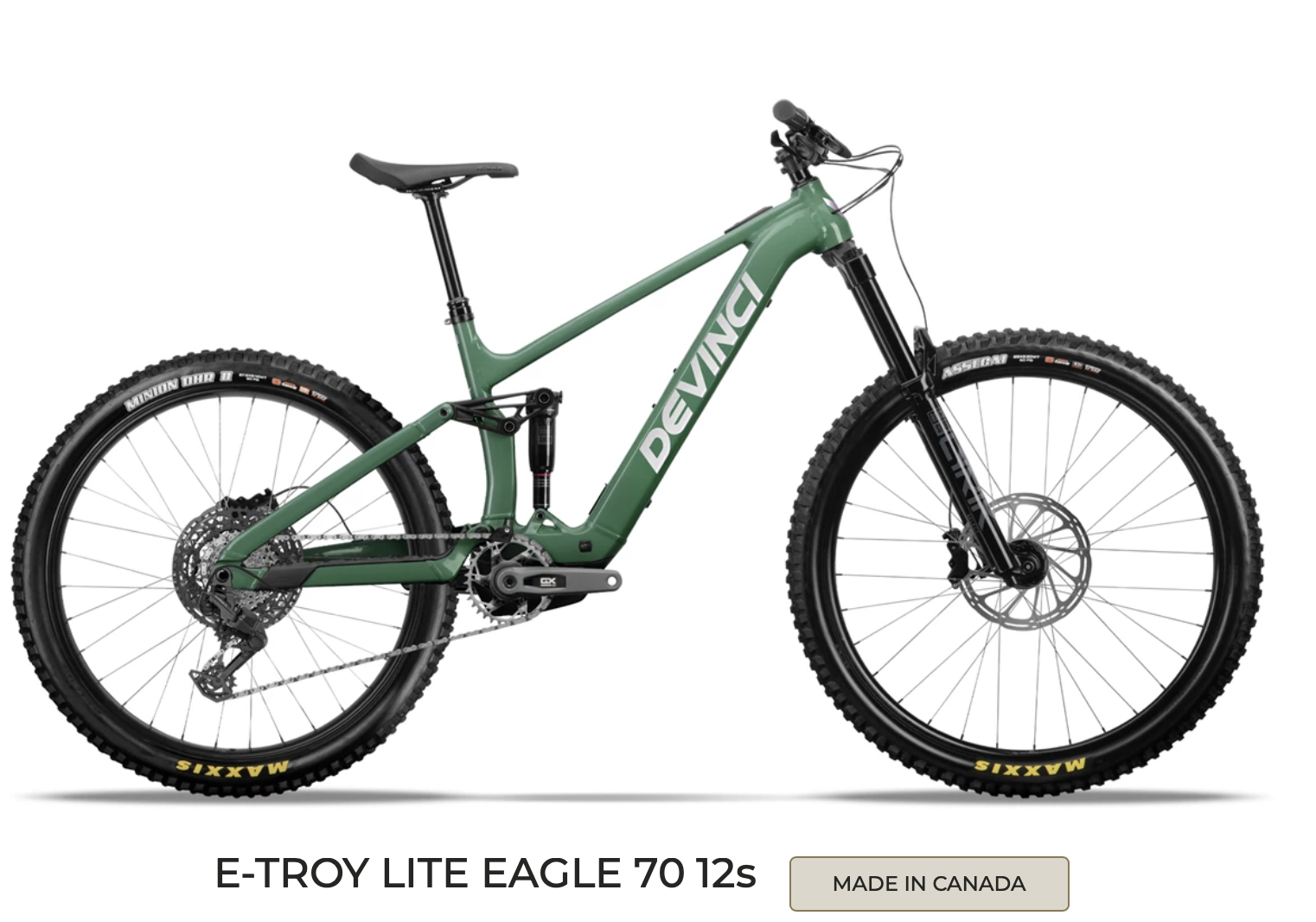

E-TROY LITE EAGLE 70 12S

COMPARE+

Manufacturing

Handcrafted in Canada

DOWNLOAD THE MANUAL

Frame



  • FRAMEAluminum Optimum G04
  • HEADSETFSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMPAlloy CNC | 34.9mm

Suspension



  • SUSPENSION FORKRockShox Lyrik | Rush RC | 160 | 44Offset
  • REAR SHOCKRockshox Deluxe Select Debonair | 185x55 Trunnion

Cockpit



  • HANDLEBARRaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
  • STEMV2 Pro | B:35mm | L:40mm | 0°
  • SADDLESDG BELAIR Max eMTB
  • SEATPOSTTranzX Dropper 31.6mm 1xLever
  • GRIPSDevinci | w/lock-on

Brakes



  • FRONT BRAKESRAM DB8
  • REAR BRAKESRAM DB8
  • FRONT ROTORSRAM Centerline | 220mm
  • ROTORSSRAM Centerline | 200mm

Drivetrain



  • REAR DERAILLEURSRAM Eagle 70 12s
  • REAR SHIFTERSRAM Eagle 70 12s
  • CRANKARMSRAM GX Bosch | 165mm
  • CHAINRINGSram XX Eagle 34T Bosch EMTB
  • CASSETTESRAM XS1270 T-TYPE | 12s | 10-52T
  • CHAINSRAM Eagle 70

Wheels



  • FRONT RIMV2 Comp 29 | 29mm inner | TR
  • FRONT HUBFormula DC-711 | Sealed | 6bolts | TA 15x110mm
  • REAR HUBFormula | DHT-148 | 6 Bolts TA 12x148 BOOST
  • REAR RIMV2 Comp 27.5 | 29mm inner | TR
  • SPOKESSapim Stainless 14G w/Nylok
  • FRONT TIREMaxxis Assegai | 29x2.5WT | 3C | EXO | TR | MaxxTerra
  • REAR TIREMaxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra

E-System



  • COMPUTERBOSCH System controller BRC3100
  • DRIVE UNITBosch Performance Line SX, 55NM, 600W

Weight

20.50 kg / 45.19 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

BOSCH PERFORMANCE LINE SX

German engineering in a Canadian-made frame. Weighing at 4.4 lbs (2.0 kg), Bosch’s newest and lightest drive unit yet, the Performance Line SXdelivers 55 Nm of torque and has a maximum power output of 600 watts. To achieve its light weight, the motor is built around a magnesium housing. The Performance Line SX utilizes Bosch’s smart system, making it compatible with their app eBike Flow and, therefore, fully tunable for the rider’s preferences.

400 Wh BATTERY

Minimal profile, seamlessly integrated, and compact – these are the defining features of the Bosch CompactTube 400 battery hiding in the E-Troy Lite. Weighing approximately 1995 grams, this energy powerhouse delivers an impressive 400 watt-hours. With the latest battery cell technology, it stands out as the Bosch eBike battery with the highest energy density.



FRAME TECH SPECS

Rear travel 150 mm
Front travel 160 mm
Wheel size Mixed-Wheel (27,5'' rear & 29'' front)
Rear tire clearance 27,5'' x 2.6”
Rear hub spacing 12 x 148 Boost
Max & min chainring clearance 38T - 32T
Chainline 55 mm
Derailleur hanger UDH™
Caliper mount 200 mm Post Mount
Max rear rotor size 220 mm
Seat tube diameter 31.6 mm ID / 34.9 mm OD
Dropper post length S → 125 mm / M → 150 mm / L → 170 mm / XL → 200 mm
Seatpost max insertion S → 225 mm / M → 250 mm / L → 275 mm / XL → 300 mm
Headset Top ZS44 | Bottom ZS56
Cable routing Internal
Rear shock dimension Trunnion | 185 x 55 mm
Rear shock hardware Top NA | Bottom 35 x 10 mm
Linkage bearing type Enduro™ double-lip sealed
Fork dimensions Axle-to-Crown measurement 571 mm / Offset 44 mm
Chain guide mount Low Direct Mount
Drive unit Bosch Performance Line SX | Smart System
Battery Bosch CompactTube 400 - 400Wh
Speed sensor Type Rotor magnet & dropout sensor
Frame material 6061-T6 Aluminum | Optimum G04
