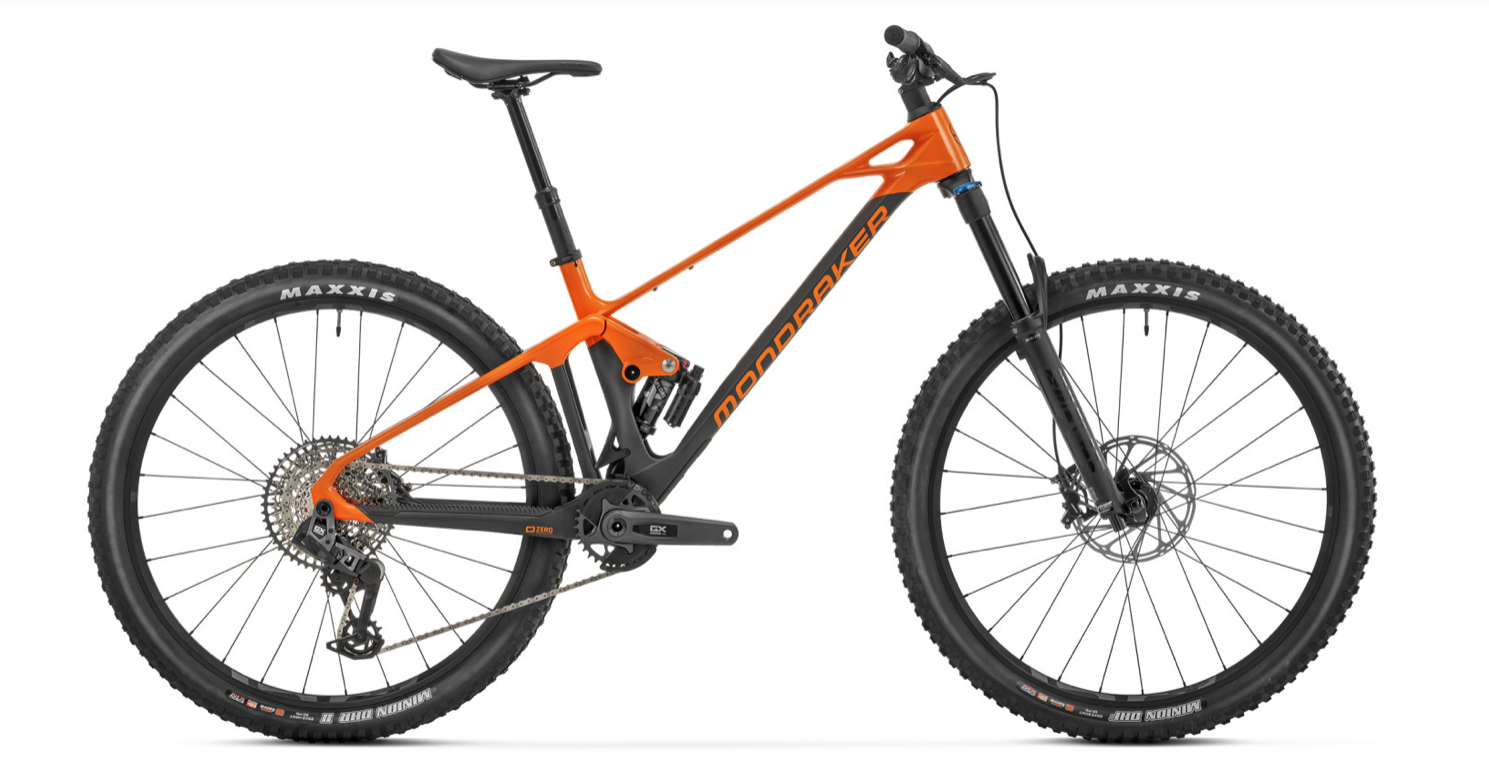

Mondraker Foxy Carbon R AXS

C$9,999.99 C$4,500.00
Availability: In stock (1)

This is a Demo bike.  It has the wheel set swapped out for a Hope Pro 5 wheel set with purple hubs and fortus rims.  Other than that it is totally stock.

COMPONENTS

TECHNICAL SPECS

  • frame

    Frame

    Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 500mm

  • rear shock

    Rear shock

    Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    Light compression, light rebound, air volume spacer 0.6

  • fork

    Fork

    Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

    headset

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

  • stem

    Stem

    ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    ONOFF Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

  • saddle

    Saddle

    SDG BEL-AIR 3.0, LPU foam, steel rails

    front brake

    Front brake

    Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram G2 R, tool-free reach adjust

  • rims

    Rims

    e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

    spokes

    Spokes

    e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

  • front hub

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    rear hub

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

  • crankset

    Crankset

    Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL55

    rings

    Rings

    32T, steel, X-Sync 2

  • bottom bracket

    Bottom bracket

    Sram DUB BSA wide, sealed bearings, 73mm

    chain

    Chain

    Sram GX T-TYPE, 12s, Powerlock

  • rear derrailleur

    Rear derrailleur

    Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s

    shift levers

    Shift levers

    Sram Eagle AXS Pod, 12s

  • casette

    Casette

    Sram XS-1275, 10-52T, T-Type, 12s

    derailleur hanger

    Derailleur hanger

    Sram UDH

  • weight

    Weight

    33,28 lb
